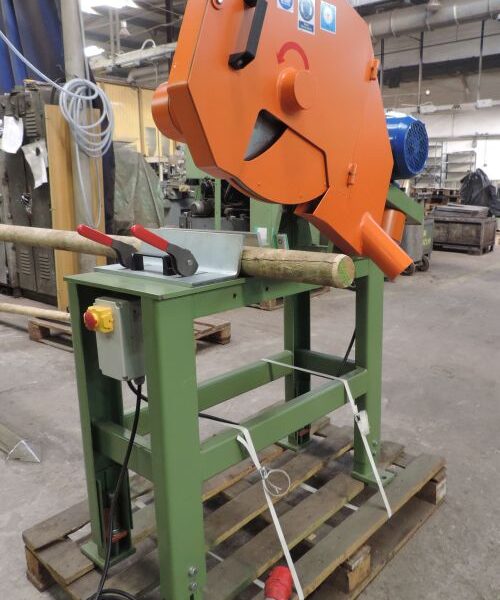

DMBA SAW

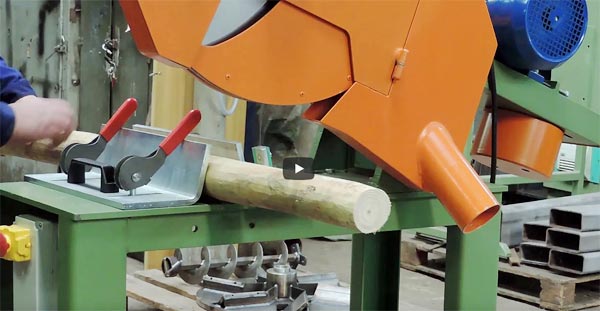

his machine is designed for transversal (perpendicular) cutting of machined (reeled and milled) max. 240 mm diameter logs. This machine is EC certified.
On the client’s request, the circular saw can be replaced; then the saw and engine rotational speeds need to be changed.
| TECHNICAL SPECIFICATION | ||
| DMBA 140 | DMBA 240 | |
| Max. diameter of log to be cut | Ø 140 mm | Ø 240 mm |
| Saw type/Catalogue no./Saw diameter compliant with EN-847-1:2103 | Saw incl. widia Ø 450 x 30 z=108 | Standard circular saw Ø 710 x 40 z=64 |
| Saw rotational speed | 2895 r.p.m | 1700 r.p.m |
| Voltage/frequency | 3/N/PE AC 400/230V-50 Hz | 3/N/PE AC 400/230V-50 Hz |
| Major drive engine, Sg100L-2 incl. brake | 3 kW; 2895 obr./min TYP Sg 100L2 | 5,5 kW; 1450 obr./min TYP Sg 132S4 |
| Diameter of de-dusting system nozzle | Ø 80 mm | Ø 80 mm |
| Air demand for dust draft | 400 m3/h | 400 m3/h |
| Weight | 210 kg | 520 kg |
